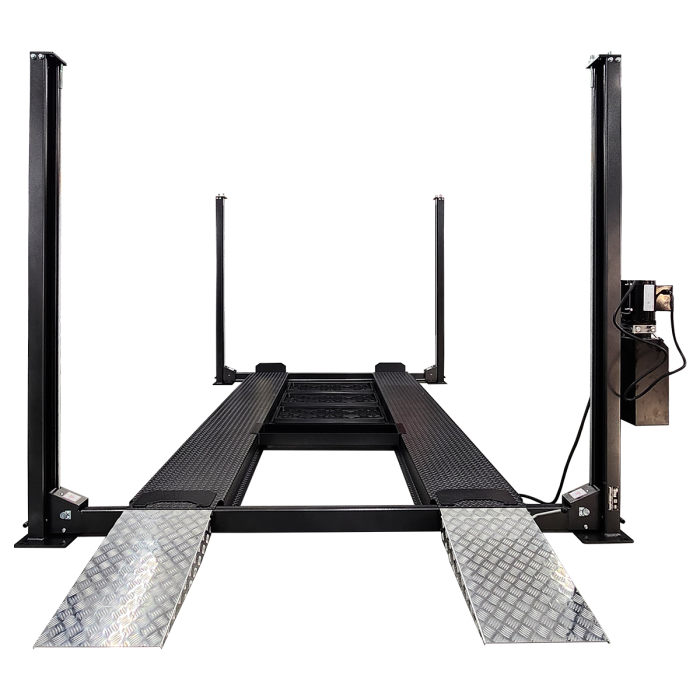

Titan Master Series SDPL-9KMS-XLT 9,000lb 4-Post Lift

$5,842.70
SKU
TTN*SDPL-9KMS-XLT

The Titan Master Series 4-post 9,000-pound parking / storage lifts are an ideal choice for automotive enthusiasts needing extra garage space for a car, truck, boat, lawn equipment, etc. The 110-volt motor allows for easy adaptation into a garage or workshop in any residential application. The optional easy to use caster kits make it possible to move the lift around your garage with ease. Easy operation lock release handle located by the power unit will minimize bending or squatting during operation. With its jack tray, greaseable pullies and the internal linkage rods that are sleek and hidden, while still accessible for adjustments if needed, these features make the Master Series a perfect lift for the individual who may work on their vehicle regularly while on the lift.

Features

  • 9,000 lb lifting capacity
  • Powder coated hammered dark finish
  • Internal linkage rods
  • Single point safety lock release handle
  • Metal hydraulic tank reservoir
  • Diamond plated steel one piece formed runways
  • Extra steel supports under runway
  • Greaseable Pulleys

Included

  • Aluminum ramps
  • 3 drip trays
  • Jack tray
  • 4 wheel stops

Optional accessories

  • Caster Kit
  • Sliding bridge jack
  • Aluminum center deck package (COMING SOON)
Specifications SDPL-9KMS-XLT
Center Of Baseplates - Width 112-3/16”
Outside Of Baseplates - Width 121-1/2”
Outside Of Columns - Width 118-3/4”
Inside of Columns - Width 112"
Overall Width w/Motor 133-7/8”
Drive-Thru 99-1/2"
Between Runways 43-1/2”
Out To Out - Runways 83-1/4”
Length of Runway 189-9/16”
Width of Runway 19-7/8”
Max Under Runway Clearance Height 81"
Total Length of Ramp 36-5/8”
Baseplate Dimensions 11-13/16” x 10-1/4”
Column Dimensions 3-1/4" x 6-1/4"
Center Of Baseplates - Length 187-5/8"
Outside Of Baseplates - Length 199-1/2”
Outside Of Columns - Length 193-7/8”
Inside Of Columns - Length 180-1/2"
Overall Length w/Ramps 231”
Lifting Height 5-1/2” - 87-3/16”
Overall Height 97-5/16”
Lifting Capacity 9,000 lb
Shipping Weight 2,002 lb
More Information
Shipping Length 194
Shipping Width 23
Shipping Height 34
