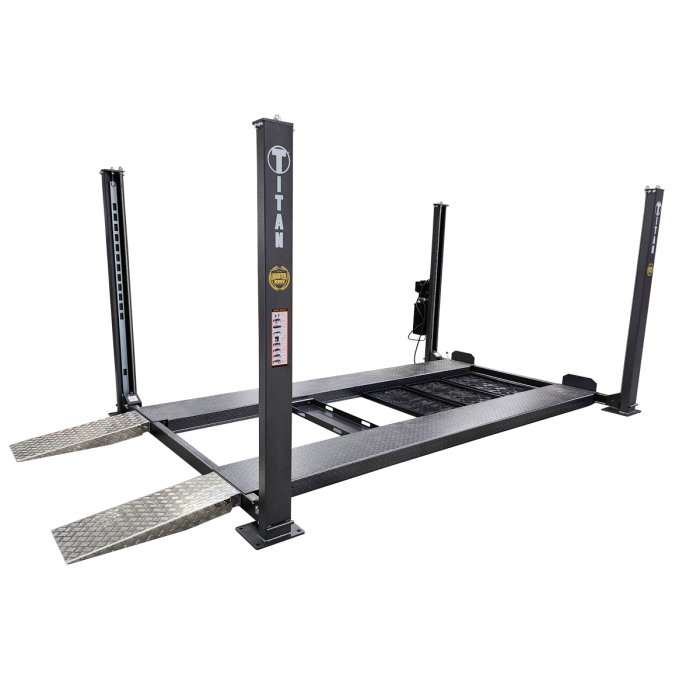

Titan Master Series SDPL-8KMS 8,000lb 4-Post Lift

$4,834.00

SKU

TTN*SDPL-8KMS

Product Manual

Spec Sheet

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Titan Master Series 4-post parking/storage lifts are an ideal choice for automotive enthusiasts needing extra garage space for a car, boat, lawn equipment, etc. The 110-volt motor allows for easy adaptation into a garage or workshop in any residential application. Easy operation lock release handle located by the power unit will minimize bending or squatting during operation. The internal linkage rods are sleek and hidden, while still accessible for adjustments if needed. This feature makes The Master Series a perfect lift for the individual who may work on their vehicle while on the lift.

Features

8,000 lb lifting capacity
Powder coated hammered dark finish
Internal linkage rods
Single point safety lock release handle
Metal hydraulic tank reservoir
Diamond plated steel one piece formed runways
2 years electrical and hydraulic
6-year structural warranty

Included

Aluminum ramps
Caster kit
3 drip trays
Jack tray
2 wheel stop plates

Optional

Aluminum center deck package
Sliding bridge jack

Specifications	SDPL-8KMS
Center Of Baseplates - Width	99-5/8”
Outside Of Baseplates - Width	109-13/16”
Outside Of Columns - Width	107-1/16”
Inside of Columns - Width	100-3/8”
Overall Width w/Motor	122-5/8”
Drive-Thru	90”
Between Runways	43-1/2”
Out To Out - Runways	80-7/8”
Length of Runway	160”
Width of Runway	18-11/16”
Total Length of Ramp	36-5/8”
Baseplate Dimensions	11-13/16” x 10-1/4”
Column Dimensions	3-3/8” x 6-5/16”
Center Of Baseplates - Length	158-1/16”
Outside Of Baseplates - Length	169-7/8”
Outside Of Columns - Length	164-3/8”
Inside Of Columns - Length	151-3/4”
Overall Length w/Ramps	201-7/16”
Lifting Height	4-1/2” - 76-3/4”
Overall Height	83-9/16”
Lifting Capacity	8,000 lb
Shipping Weight	1,667 lb

More Information

More Information
Shipping Length	164
Shipping Width	23
Shipping Height	45
Shipping Weight	1,667 lb
