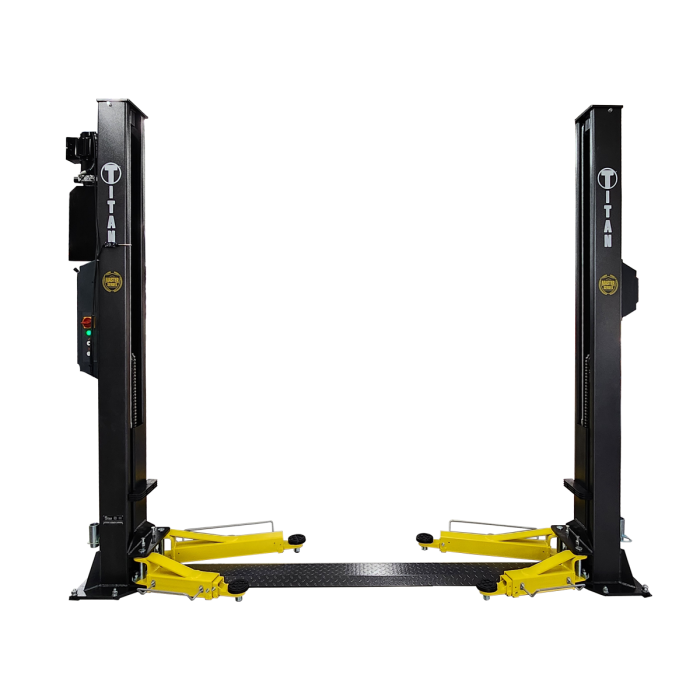

Titan Master Series HD2P-9KMSF 9,000lb Floorplate 2-Post Lift

$3,265.00
SKU
TTN*HD2P-9KMSF

  • Chain Over Roller Hydraulic Cylinders
  • Serviceable Arm Restraint Locks
  • Thread-up Lifting Pads
  • Carriage Limit Switch
  • 3-Stage Front Arms
  • Single-Point Lock Release
  • European Style Carriages
  • 4” Truck Adapters
  • Rubber Door Guards
  • Steel Toe-guards
  • Steel Hydraulic Oil Reservoir
  • 5 Year Structural Warranty
  • 2 Year Electric/Hydraulic Warranty
  • Lifetime Warranty on Nylon Slide Blocks
  • Durable Textured Powder-coated Finish

Specs

Type Floorplate / Asymmetric Arms
Lifting Capacity 9,000lb
Lifting Time 50-60 sec.
Column Height* 112"
*CARRIAGE LOCK LADDER WILL EXTEND 10” ABOVE TOP OF COLUMN WHEN RAISED TO MAX HEIGHT.
Overall Width 134 1/4"
Width Between Posts 111 1/2"
Drive-Thru 100 3/4"
Low Pad Height 3 3/4"
Lifting Height 73”
(80 1/4" using Truck Adapters with Pad Mounts threaded up)
Power Unit 220V/1Ph/60Hz

Shipping Info

Shipping Length 113"
Shipping Width 22"
Shipping Height 39"
Shipping Weight 1,440 lb
More Information
Shipping Length 113
Shipping Width 22
Shipping Height 39
Lifting Capacity 9,000 lb
Power Unit 220V
Shipping Weight 1,440 lb
Warranty Lifetime Nylon Slide Blocks / 5 Year Structural / 2 Year Electric/Hydraulic
