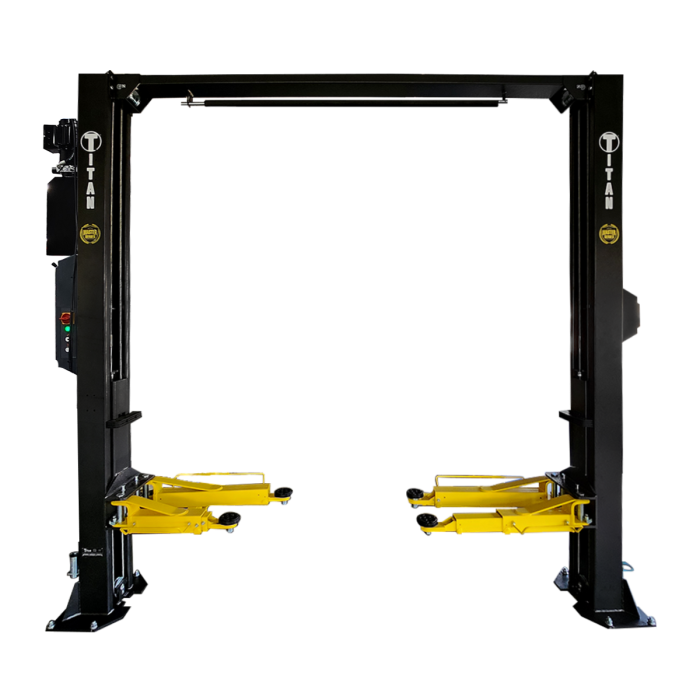

Titan Master Series HD2P-9KMSC 9,000lb Clearfloor 2-Post Lift
$3,265.00
SKU
TTN*HD2P-9KMSC
- Direct Drive Hydraulic Cylinders
- Overhead Shut-off Bar w/Limit Switch
- Serviceable Arm Restraint Locks
- Thread-up Lifting Pads
- Carriage Limit Switch
- 3-Stage Front Arms
- Single-Point Lock Release
- European Style Carriages
- 4” Truck Adapters
- Rubber Door Guards
- Steel Toe-guards
- Steel Hydraulic Oil Reservoir
- 5 Year Structural Warranty
- 2 Year Electric/Hydraulic Warranty
- Lifetime Warranty on Nylon Slide Blocks
- Durable Textured Powder-coated Finish
Specs
| Type | Clearfloor / Asymmetric |
|---|---|
| Lifting Capacity | 9,000lb |
| Lifting Time | 50-60 sec. |
| Overall Height* | 140 1/2" *CYLINDERS WILL EXTEND 7” THROUGH THE TOP PLATES WHEN LIFT IS RAISED TO MAX HEIGHT. |
| Width Between Posts | 111 1/2" |
| Drive-Thru | 100 3/4" |
| Low Pad Height | 3 3/4" |
| Lifting Height | 74 1/4” (81 3/4" using Truck Adapters with Pad Mounts threaded up) |
| Power Unit | 220V/1Ph/60Hz |
Shipping Info
| Shipping Length | 142" |
|---|---|
| Shipping Width | 22" |
| Shipping Height | 42" |
| Shipping Weight | 1,380 lb |
| Shipping Length | 142 |
|---|---|
| Shipping Width | 22 |
| Shipping Height | 42 |
| Lifting Capacity | 9,000 lb |
| Power Unit | 220V |
| Shipping Weight | 1,380 lb |
| Warranty | Lifetime Nylon Slide Blocks / 5 Year Structural / 2 Year Electric/Hydraulic |
