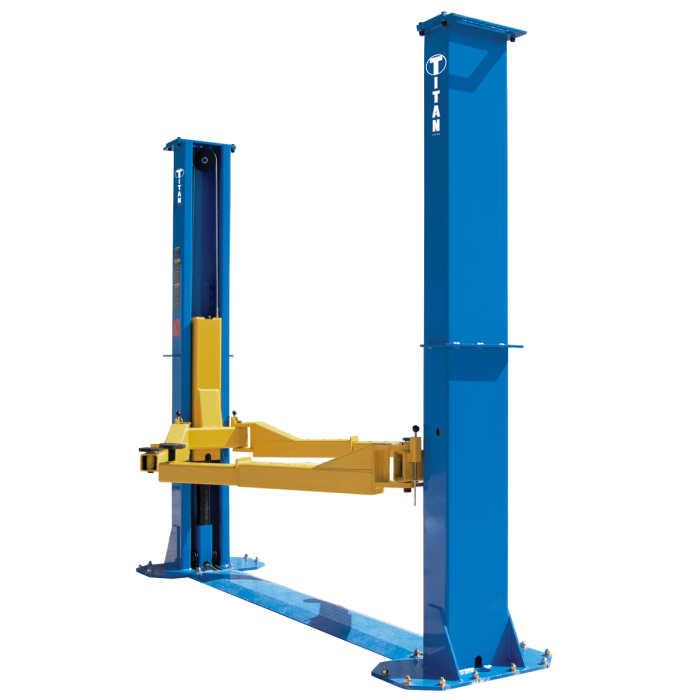

Titan HD2P-12000F 2-Post Lift


The Titan 12,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift.

They come in a durable scratch resistant Cobalt Blue powder-coated finish. The Titan 12,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.


  • Free mounting hardware
  • Low profile arm restraints
  • Durable powder coat finish
  • "Big Foot" base plates for extra stability
  • Dual 3" cylinders with low friction chain rollers
  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty


Overall Height 122"
Overall Width 148"
Width Between Post 120.25"
Drive-Thru 107.5"
Min Pad Height 5"
Max Pad Height 76.5"
Lifting Speed 60 sec
Lifting Capacity 12,000 lb
Concrete Spec Min 6" @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP


Shipping Length 126"
Shipping Width 35"
Shipping Height 53"
Shipping Weight 2,500 lb
More Information
Shipping Length 126
Shipping Width 35
Shipping Height 53
Warranty 5 Year Structural / 1 Year Parts
