Titan SDML-1000D-XLT Motorcycle Lift

SKU

GRP*SDML-1000D-XLT

Grouped product items
Product Name
Titan 1,000 lb Motorcycle Lift With Side Extensions - Black/Grey - (With Vise) $2,466.29

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

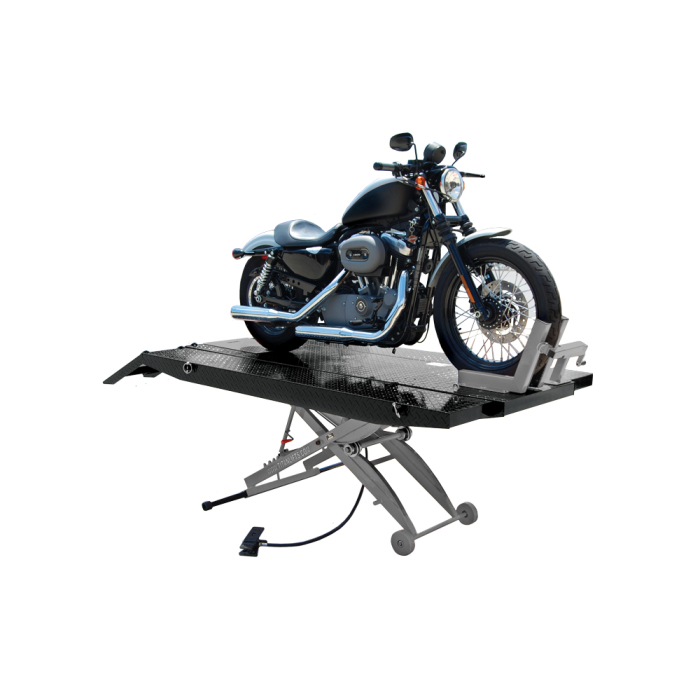

The Titan 1000D-XLT comes fully equipped with front tire vise, front extension and side extensions which gives it a large enough platform to work on everything from motorcycles and ATVs to jet skis and snowmobiles. This heavy-duty diamond plated lift can handle up to 1,000 pounds with its 7" air powered cylinder which raises the extra-large platform up to 33". Choose between two different powder coating color schemes of Black & Grey or Black & Orange.

INCLUDES

Front Wheel Vise
Multi-Positional Front Table Extension
Side Extensions
Extended Ramp
Stabilizer Bar
Standard Rear Wheel Drop Out
Roller Plate Drop Out
Detachable Ramps
Air Powered Lift Controls
Two Wheeled Dolly

Locking Heights

Lock Position 1	25.25"	Lock Position 4	30.25"
Lock Position 2	27.25"	Lock Position 5	31.75"
Lock Position 3	28.75"

Dimensions

Length w/Front Extension (Position 1)	99"
Length w/Front Extension (Position 1) & Ramp	120"
Length w/Front Extension (Position 2)	94.5"
Length w/Front Extension (Position 2) & Ramp	114.5"
Length w/Front Extension (Position 3)	89.5"
Length w/Front Extension (Position 3) & Ramp	109.5"

SPECIFICATIONS

Front Extension	24.5" x 23.75"
Side Extensions (each)	11.75" x 87.5"
Table Length	87.5" - 99"
Table Width	24" or 48"
Lowered Height	8"
Rise Height	33"
Lifting Capacity	1,000 lb
Power Type	Air Only
Power Spec	90 - 110 PSI

SHIPPING

Shipping Length	91"
Shipping Width	27"
Shipping Height	23"
Shipping Weight	750 lb

More Information

More Information
Warranty	1 Year Parts
