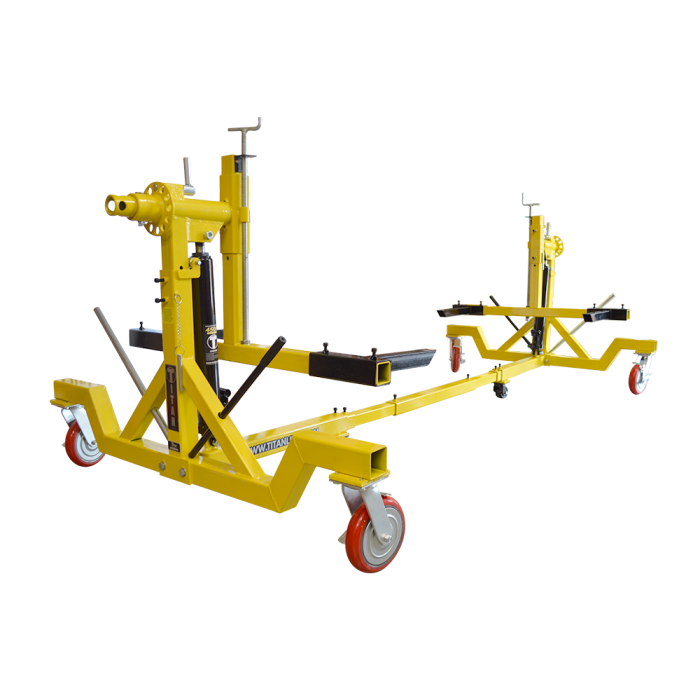

Titan Automotive Rotisserie ROT-4500


Being in the automotive industry, we understand the importance of our tools and equipment, especially when it comes to automotive refinishing. With it’s robust 4500lb capacity, our ROT-4500 is the standard by which all other vehicle rotisseries should be judged. The dual hydraulic cylinders effortlessly raise the lifting cradles to the desired working height which makes getting to those hard to reach places a breeze. The ROT-4500 can handle just about any chassis configuration you throw at it when utilizing our optional mounting adapters.

For safety, we have included (4) 8" locking casters that are designed to roll effortlessly without marring your shop floor. Another accessory item that we offer for the ROT-4500 is the Rotisserie Leg kit which is used to help stabilize the load when rotating the chassis or body 360 degrees. The durable powder coated finish will withstand the toughest abuse. If you are looking to start a restoration project or already run a full-time body shop, ROT-4500 is an economical solution that will keep you working smarter, not harder.


Weight Capacity 4,500 lb
Max Height 49"
Min Height 21"
Max Length 260"
Min Length 121"
Width 58.5"
Width (with leg kit attached) 81"
Max Length Between Support Arms 238"
Min Length Between Support Arms 99"
Max Project Width (dependent on balance point) 80" - 88"
Hydraulic Cylinder Travel 17"
Acme Screw Travel 8.5"
Height from ground to center of rotating axis 37" - 54"


Shipping Length 64"
Shipping Width 41"
Shipping Height 20"
Shipping Weight 560 lb
More Information
Shipping Length 64
Shipping Width 41
Shipping Height 20
Warranty 1 Year Parts
