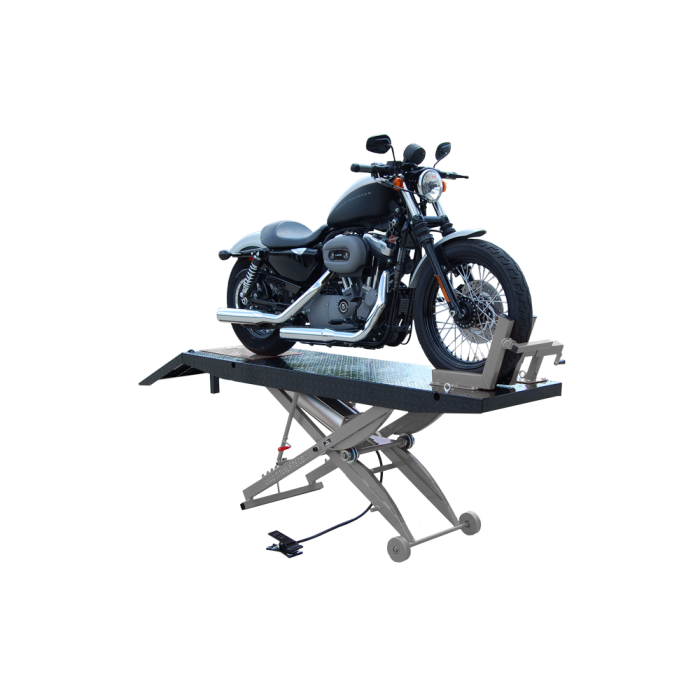

Titan SDML-1000D Motorcycle Lift

The heavy-duty diamond plated Titan 1000D is an air powered lift table that has a 1,000 lb. lifting capacity and an extra long working table so that even your longest motorcycle won't have a problem fitting on the 99" work space. With a max lifting height of 33", the 1000D is a perfect addition to any shop or home garage. Choose between two different powder coating color schemes of Black & Grey or Black & Orange.

INCLUDES

  • Front Wheel Vise
  • Multi-Positional Front Table Extension
  • Standard Rear Wheel Drop Out
  • Roller Plate Drop Out
  • Standard Detachable Ramp
  • Extended Ramp
  • Air Powered Lift Controls
  • Two Wheeled Dolly

**Does NOT include stabilizer bar**


Locking Heights

Lock Position 1 25.25" Lock Position 4 30.25"
Lock Position 2 27.25" Lock Position 5 31.75"
Lock Position 3 28.75"

Dimensions

Length w/Front Extension (Position 1) 99"
Length w/Front Extension (Position 1) & Ramp 120"
Length w/Front Extension (Position 2) 94.5"
Length w/Front Extension (Position 2) & Ramp 114.5"
Length w/Front Extension (Position 3) 89.5"
Length w/Front Extension (Position 3) & Ramp 109.5"

SPECIFICATIONS

Front Extension 24.5" x 23.75"
Table Length 87.5" - 99"
Table Width 24"
Lowered Height 8"
Rise Height 33"
Lifting Capacity 1,000 lb
Power Type Air Only
Power Spec 90 - 110 PSI

SHIPPING

Shipping Length 91"
Shipping Width 27"
Shipping Height 13"
Shipping Weight 525 lb

DETAILS

GTIN / UPC
BLACK/GREY: 837654443187
BLACK/ORANGE: 837654443194
Warranty 1 Year Parts
