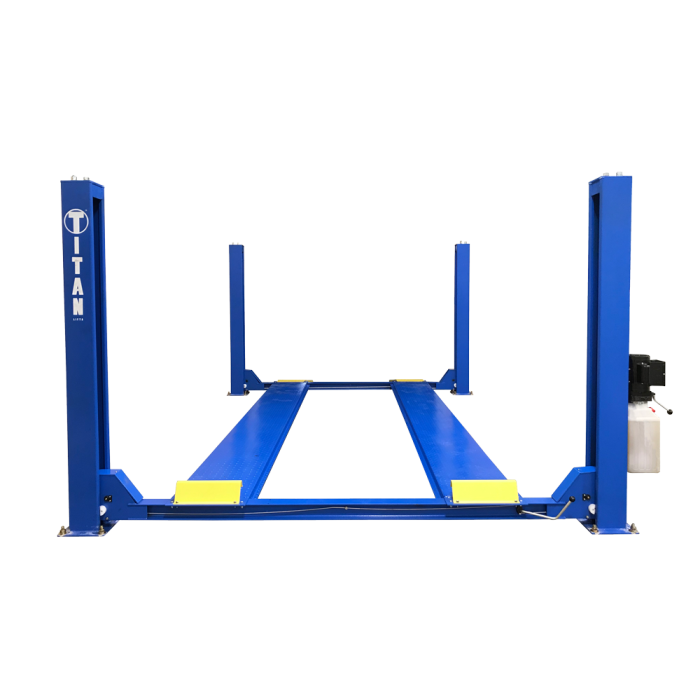

Titan HD4P-12000 4-Post Lift


The HD4P-12000 4-post lift provides 12,000 lb of lifting capacity. There is no power beam; the cylinder is stored under one of the single-piece diamond-plate tracks. The HD4P-12000 utilizes a simple lever release system and safety locks. This commercial grade, cable driven lift gives you the power needed to work on heavy vehicles in a solid 4-post setup.


Overall Height 88"
Overall Width 137"
Overall Length 195.25"
Lifting Speed 51 sec
Max Lifting Height 67"
Lowered Runway Height 6"
Width Between Columns 118.5"
Max Drive-Thru Clearance 104.5"
Max Clearance Under Runway 63"
Runway Width 19.25"
Width Between Runways 48"
Runway Length (no ramp) 191.25"
Ramp Length 38"
Load Capacity 12,000 lb
Concrete Spec. Min. 4" Reinforced @ 3,000 PSI
Power Supply 220V-1PH-60HZ-20AMP

Shipping Info

Shipping Length 196"
Shipping Width 25"
Shipping Height 43"
Shipping Weight 2,320 lb

More Information
Shipping Length 196
Shipping Width 25
Shipping Height 43
Warranty 5 Year Structural / 1 Year Parts
