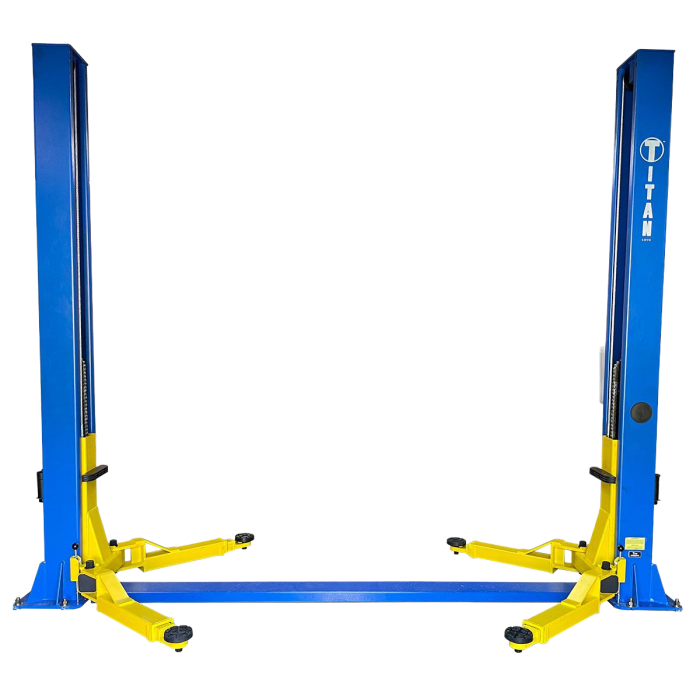

Titan HD2P-9000AF 2-Post Lift Gen-2


The Titan 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications.

These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.


  • Commercial Grade
  • 9,000lb. Lifting Capacity
  • Symmetric Arm Design
  • Rubber Door Guards
  • Dual-Point Safety Release
  • Durable Powder-coated Finish
  • Low-profile Lifting Arms equipped with Automatic Arm Restraints
  • Dual 3” Cylinders with Low Friction Chain Rollers
  • Threaded Lifting Pads
  • Stackable Truck Adapters
  • Low-Profile Floorplate (Protects Hose and Cables)
  • Space-saving Power Unit Mounting Bracket
  • Sleek Internal Hose Routing with Integrated Hose Guards
  • Anchor Bolt Kit Included
  • 1 Year Electric/Hydraulic Parts Warranty
  • 5 Year Structural Parts Warranty

*Perfect for garages and shops with low ceilings*


Overall Height 112"
Overall Width 134-5/8"
Width Between Posts 110-3/8"
Drive-Thru 100-5/8"
Min Pad Height 4-5/8"
Max Pad Height 72-3/4"
Lifting Speed 45 sec
Lifting Capacity 9,000 lb
Concrete Spec Min 4" @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP


Shipping Length 115"
Shipping Width 19"
Shipping Height 45"
Shipping Weight 1,300 lb
More Information
Shipping Length 118
Shipping Width 19
Shipping Height 45
Warranty 5 Year Structural / 1 Year Parts
