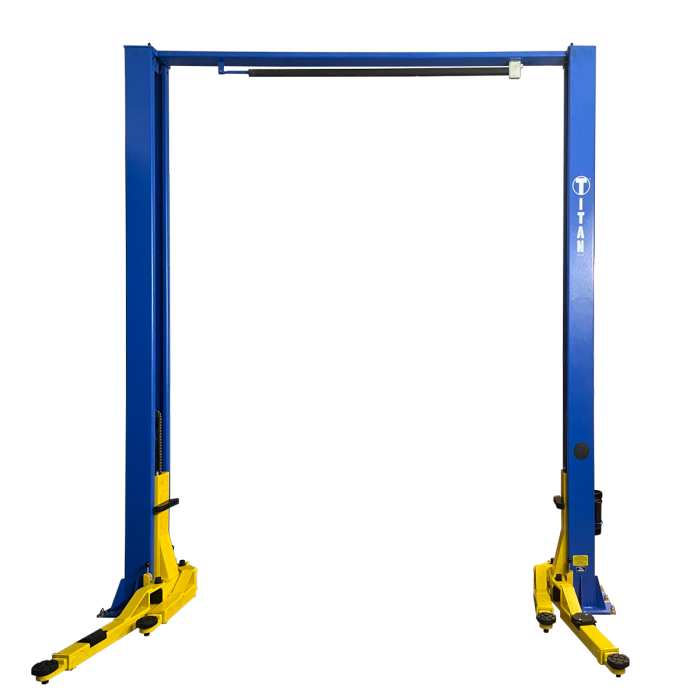

Titan HD2P-9000AC 2-Post Lift Gen-2


The Titan 9,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.

The Titan 9,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 4 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.


  • Commercial Grade
  • 9,000lb. Lifting Capacity
  • Asymmetric Arm Design
  • Rubber Door Guards
  • Padded Overhead Safety Shut-off Bar
  • Dual-Point Safety Release
  • Durable Powder-coated Finish
  • Low-profile Lifting Arms equipped with Automatic Arm Restraints
  • Dual 3” Cylinders with Low Friction Chain Rollers
  • Threaded Lifting Pads
  • Stackable Truck Adapters
  • Space-saving Power Unit Mounting Bracket
  • Sleek Internal Hose Routing with Integrated Hose Guards
  • Anchor Bolt Kit Included
  • 1 Year Electric/Hydraulic Parts Warranty
  • 5 Year Structural Parts Warranty


Shipping Length 145"
Shipping Width 19"
Shipping Height 44"
Shipping Weight 1,380 lb
More Information
Shipping Length 146
Shipping Width 19
Shipping Height 44
Lifting Capacity 9,000 lb
Power Unit 220V
Amp Draw 15 - 26 amp
Lifting Speed 45 sec
Width 137.80"
Height 142.95"
Width Between Columns 113.62"
Drive Thru Clearance 103.98"
Lifting Height 4.65" - 72.84"
Concrete Spec Minimum 4" @ 3000PSI
Shipping Weight 1,380 lb
Warranty 5 Year Structural / 1 Year Parts
