Model Number:
[HD2P-15000C]

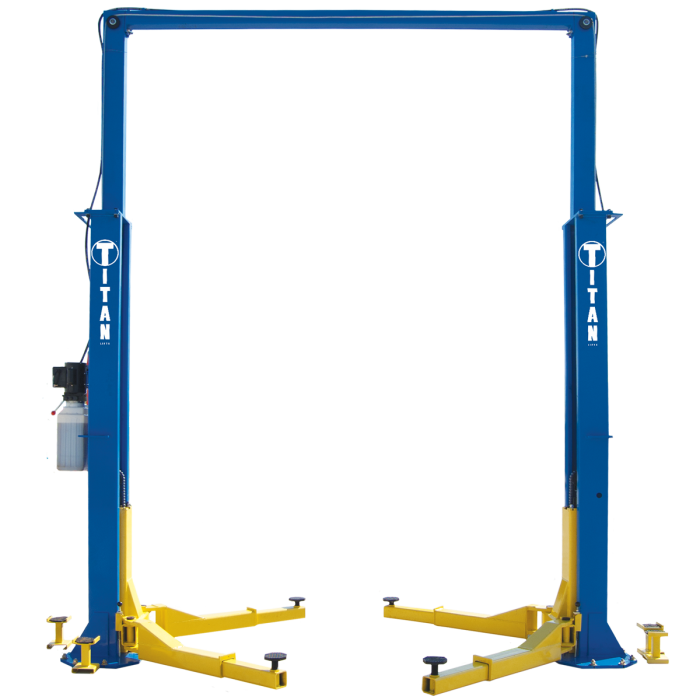

Titan HD2P-15000C 2-Post Lift

A Texas style two post lift with 15,000 lb. lifting capacity, large twin 3” cylinders with low friction chain rollers, and a “big foot” base plate for extra stability.

The Titan 15,000 LB 2 Post lifts are commercial grade and ideal for automotive service shops or auto enthusiasts. They come with a 220 Volt power unit easily adaptable to most commercial applications. These lifts have the heavy-duty leaf chain, the steel pulleys, the high-strength cable equalization system and everything you'd expect from a quality lift. They come in a durable scratch resistant Cobalt Blue powder-coated finish with bright yellow arms for safety.

The Titan 15,000 LB 2 Post above ground lifts should be installed on a concrete floor with a minimum thickness of 6 inches and 3,000 PSI strength. These rugged and versatile lifts are engineered and manufactured to the highest quality standards to provide you years of trouble free service.

Features

  • 15,000 lb. lifting capacity
  • Low profile automatic arm restraints
  • Dual 3” diameter cylinders with low friction chain rollers
  • “Big Foot” base plates for stability
  • Electrical override automatic safety shut-off on clear-floor models
  • FREE mounting hardware
  • Durable powder-coated finish
  • 1 Year Electric/Hydraulic Warranty
  • 5 Year Structural Warranty

SPECIFICATIONS

Overall Height 182"
Overall Width 148.375"
Width Between Post 120.75"
Drive-Thru 109.5"
Min Pad Height 5"
Max Pad Height 76.5"
Lifting Speed 45 sec
Lifting Capacity 15,000 lb
Concrete Spec Min 6" @ 3,000 PSI
Power Unit 220V-1PH-60HZ-20AMP

SHIPPING

Shipping Length 126"
Shipping Width 36"
Shipping Height 53"
Shipping Weight 2,650 lb

DETAILS

GTIN / UPC 091037579539
Warranty 1 Year Parts / 5 Year Structural
