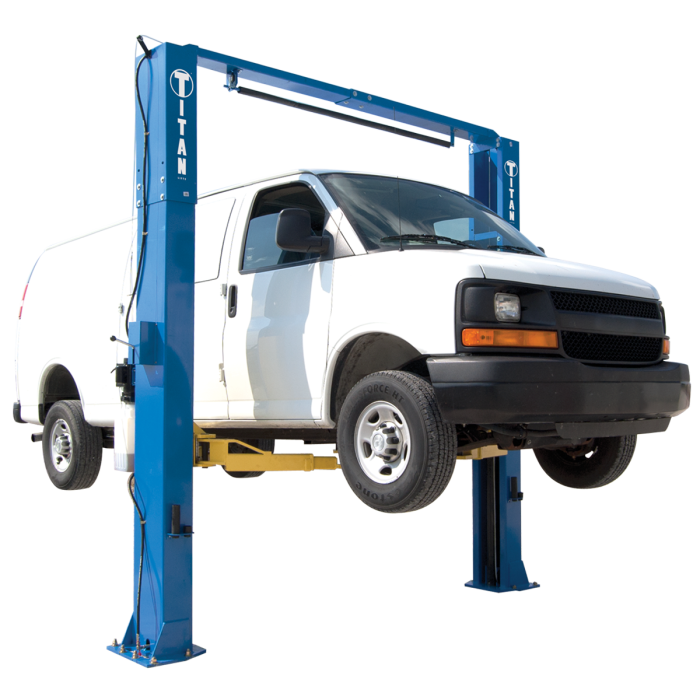

Titan HD2P-11000ACX 2-Post Lift
$5,385.00
SKU
TTN*HD2P-11000ACX
The Titan 11000ACX provides more lifting power, with shorter columns for those who can't fit the full-size model into their workspace. This 2-Post lift features an 11,000 lb. capacity, adjustable two-piece columns, and a single point safety release for easy lowering.
In need of a higher lifting capacity but don't have the ceiling height for a larger lift? The adjustable Titan 11000ACX might just be the answer to your problems. This 11,000 lb. capacity two post asymmetric clear floor style lift features adjustable columns that give the lift an overall height of 142" to146" which gives it the same overall height as the standard 9K clear floor lifts.
Features
- Adjustable two-piece columns
- Padded cut-off bar with automatic electric override
- Single point lock release
- Free mounting hardware
- Stackable truck adapters
- Powder coat finish
- 1 Year Electric/Hydraulic Warranty
- 5 Year Structural Warranty
SPECIFICATIONS
| Overall Height | 142" or 146" |
|---|---|
| Overall Width | 137.375" |
| Width Between Post | 110.75" |
| Drive-Thru | 98.5" |
| Min Pad Height | 4.75" |
| Max Pad Height | 82" |
| Lifting Speed | 50 sec |
| Lifting Capacity | 11,000 lb |
| Concrete Spec Min | 6" @ 3,000 PSI |
| Power Unit | 220V-1PH-60HZ-20AMP |
SHIPPING
| Shipping Length | 115" |
|---|---|
| Shipping Width | 20" |
| Shipping Height | 48" |
| Shipping Weight | 2,200 lb |
| Shipping Length | 116 |
|---|---|
| Shipping Width | 21 |
| Shipping Height | 51 |
